Tilton Racing 72-615 Spring Loaded Forward Swinging Throttle Pedal Assembly With Pedal Stops

Forged aluminum pedal arm with an adjustable (vertical & horizontal) foot pad and grip tape. The pedal is adjustable with two stops. One prevents the throttle cable from over stroking. The other adjusts the pedal's resting position.

This throttle pedal can be used in front or rear engine applications with a pushing or pulling throttle cable setup or it can be used in a drive by wire setup. Throttle linkage is sold separately and listed below.

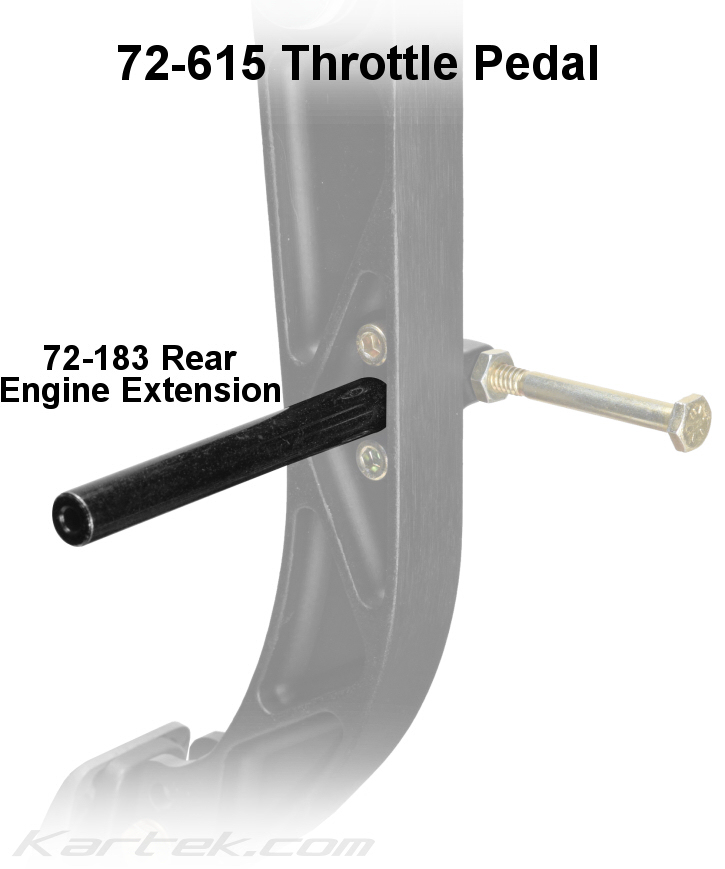

Tilton's 72-183 (not included) rear engine cut to length extension helps get the push/pull Morse style throttle cable away from your foot. It uses a double sided stud to thread into the forward stopper of the throttle pedal between the two allen bolts.

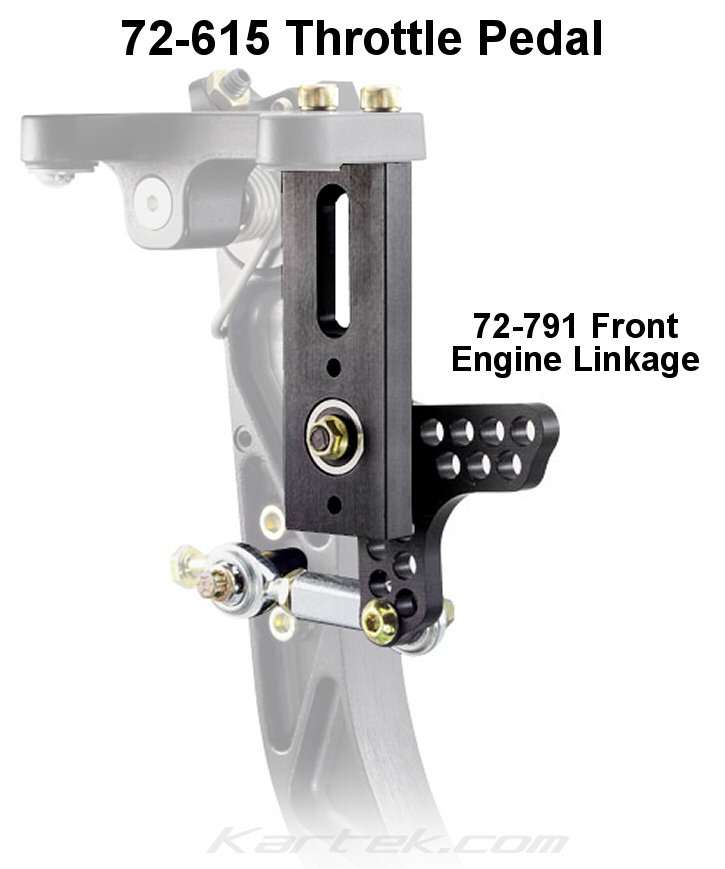

Tilton's 72-791 (not included) throttle linkage kit bolts to the existing holes on the pedal assembly frame. It includes an adjustable 1/4" heim joints that connects to the side of this gas pedal. The V shaped cam has a plethora of holes allowing you to use it as a 1:1 ratio or more like a cantilever. That setup is designed specifically for front engine vehicles with a pull type throttle cable.

Similar to the 72-791, Tilton also offers the 72-792 (not included) drive-by-wire throttle linkage kit that bolts to the existing holes on the pedal assembly frame and also It includes an adjustable 1/4" heim joints that connects to the side of this gas pedal.
