Wilwood 340-13834 Forward Swinging Mount Clutch Or Brake Pedal Assembly For Single Master Cylinder

Estimate Shipping
Price: $118.79
2 in stock
Sold As:
1 Pedal Assembly
Part Number: WIL34013834
MFG Number:
340-13834
California Prop 65 Warning: This item may cause cancer or reproductive harm. For more info visit p65warnings.ca.gov The above image is a representation of this item. Actual item may vary. If it's crucial to what you're working on, call the store at 951.737.RACE, and one of our sales reps will be happy to email you a current photograph. Product Information:
This offroad pedal assembly can be used for 2 wheel rear brakes only on a Baja bug, buggy or sand rail with brake drums or small 2 piston calipers. If you use it as a clutch pedal, a 5/8" clutch master cylinder gives you a softer pedal feel but you have to push the clutch pedal farther down. The clutch pedal will move about the same distance as a stock beetle clutch pedal if you use a 5/8" master cylinder. A 3/4" clutch master cylinder gives you a harder pedal feel but you don't push the clutch pedal down as far as the 5/8" master cylinder because you're moving more fluid volume.
For this pedal assembly, here is an example of the math. Pushing the pedal with 100 pounds of force, a 7.08:1 pedal ratio and a 3/4" bore master cylinder:
-

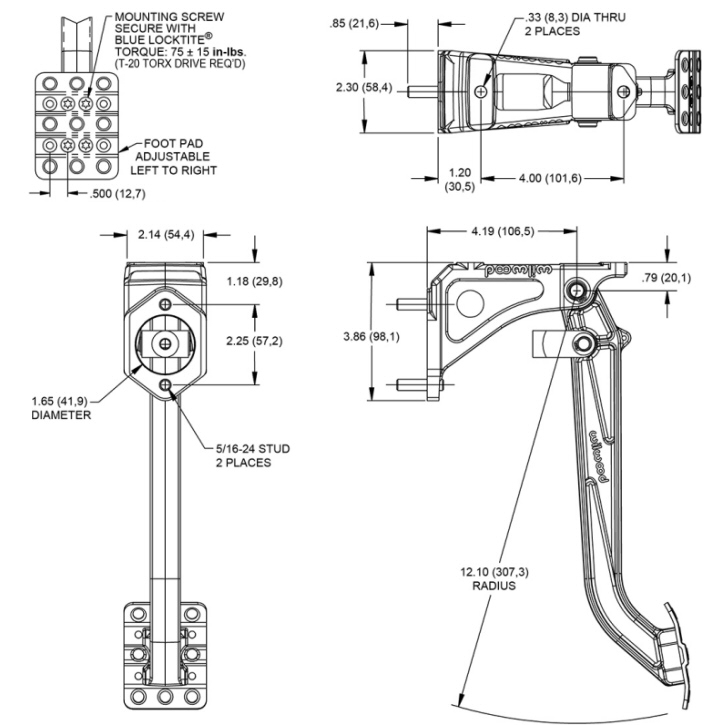

Dimensions:
- Mounting surface to bottom of pedal: 12-7/8"
- Pedal pivot to center of pedal: 10-5/8"
- Pedal pivot to center of MC push rod: 1-1/2"
- 10.625 ÷ 1.50 = 7.08:1 Ratio
- Pedal pad: 2-3/8" wide x 3" tall
- Uses a standard 2-1/4" vertical bolt pattern cylinder
- Uses a 5/16" pushrod for the master cylinder
- Uses 5/16" bolts to secure master cylinder
For this pedal assembly, here is an example of the math. Pushing the pedal with 100 pounds of force, a 7.08:1 pedal ratio and a 3/4" bore master cylinder:
-
Pedal force at master cylinder:
100 lbs x 7.08:1 ratio = 708 lbs
3/4" master cylinder area:
A = π r2
A = 3.14159 x 0.375 x 0.375
A = 0.4418 in2
Line pressure:
708 lbs ÷ 0.4418 in2 ≈ 1603 PSI
