Tatum Motorsports Porsche 930 - 28 Spline Midboard Floater Hub Kit 4 Piston Calipers 12" Rotors

Suggested: $2,599.00 Kartek Price: $2,499.00
Sold As:
1 Complete Disc Brake Kit
Part Number: TMST102
MFG Number:
T-102
CA Prop 65 Warning
Tatum Motorsports Porsche 930 - 28 Spline Midboard Floater Hub Kit 4 Piston Calipers 12" Rotors
Tatum Motorsport's complete fully sealed disc brake hub kits include everything for both sides of the vehicle that you'll need, EXCEPT adapter fittings for whatever type of brake line you plan to use, lug nuts, and axle boots. The adapter fittings are listed below.
Specs:

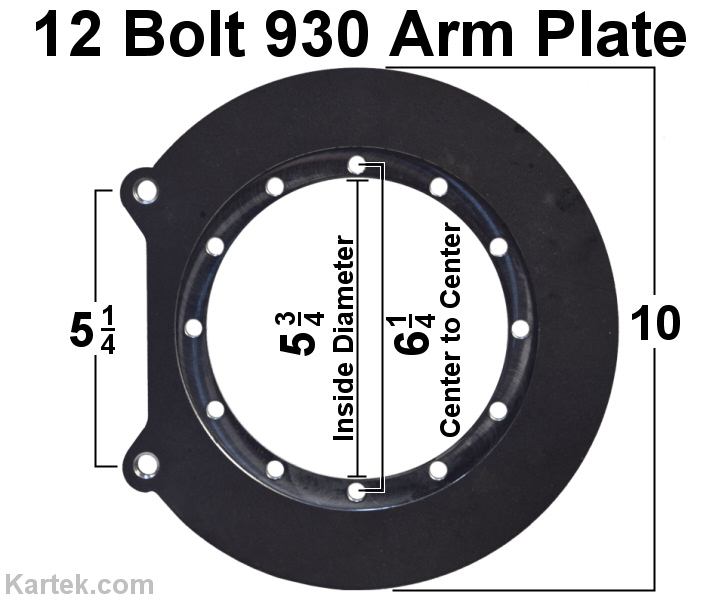

This kit fits an industry standard 6-1/4" center 12 bolt arm plate (See above photo for trailing arm reference)
Uses standard DOT 3, DOT 4 or DOT 5.1 brake fluid
1/8" NPT pipe thread inlet (You'll need adapter fittings listed below)
Hubs have 14mm-1.5 thread studs pressed into them (You'll need to purchase lug nuts)
What's Included:
Two 5 Lug VW Pattern (5 on 205mm) Hubs
Two 4 Piston Calipers With Pads
Two Hub Caps
Bearings
Seals
28 Spline GKN CV Joints Polished
What's NOT Included:
Brake Line Adapter Fittings
Lug Nuts
Axle Boots
Two 5 Lug VW Pattern (5 on 205mm) Hubs
Two 4 Piston Calipers With Pads
Two Hub Caps
Bearings
Seals
28 Spline GKN CV Joints Polished
What's NOT Included:
Brake Line Adapter Fittings
Lug Nuts
Axle Boots

This kit fits an industry standard 6-1/4" center 12 bolt arm plate (See above photo for trailing arm reference)
Uses standard DOT 3, DOT 4 or DOT 5.1 brake fluid
1/8" NPT pipe thread inlet (You'll need adapter fittings listed below)
Hubs have 14mm-1.5 thread studs pressed into them (You'll need to purchase lug nuts)
