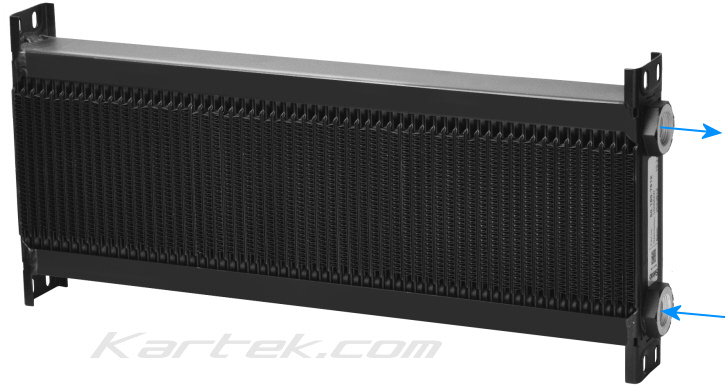

Setrab 50-150-7612 ProLine Standard 1 Series 50 Row Oil Cooler With 22mm Inlet and Outlet
Estimate Shipping
Price: $486.82
2 in stock
Sold As:
1 Oil Cooler
Part Number: SET501507612
MFG Number:
50-150-7612
California Prop 65 Warning: This item may cause cancer or reproductive harm. For more info visit p65warnings.ca.gov The above image is a representation of this item. Actual item may vary. If it's crucial to what you're working on, call the store at 951-737-RACE, and one of our sales reps will be happy to email you a current photograph. Product Information:
-
Specifications:
- 50 row 1 series ProLine STD Oil cooler
- Requires m22 fittings
- 2" thick
- 15-3/8" tall not including fittings*
(see note below) - 6-1/2" wide not including the mounting flanges*
(see note below) - For flat surface mounting use 23-1002 brackets
The 1-series Setrab ProLine STD oil cooler is the narrowest width from their standard series of oil coolers. The stacked plate style of Setrab's STD range oil coolers is compact with state-of-the-art brazing technology that makes a durable and highly efficient design.
Warning! Fragola, sūsa Setrab, and XRP all make 22mm-1.5 thread fittings. The 22mm thread on Fragola's fittings is too long. This oil cooler will only work with the short thread ORB o-ring boss fittings from sūsa Setrab or XRP.
sūsa Setrab USA ORB fitting part numbers:
22-M22AN04-SE = AN #4 Male to m22 Straight
22-M22AN06-SE = AN #6
22-M22AN08-SE = AN #8
22-M22AN10-SE = AN #10
22-M22AN12-SE = AN #12
22-M22AN16-SE = AN #16
22-M22BJAN06-90 = AN #6 Male to m22 Banjo
22-M22BJAN08-90 = AN #8
22-M22BJAN10-90 = AN #10
22-M22BJAN12-90 = AN #12
XRP ORB fitting part numbers:
922004 = AN #4 Male to m22 Straight
922006 = AN #6
922008 = AN #8
922010 = AN #10
922012 = AN #12
