Fox Shocks 241-02-110-2 IBP Internal Bypass 8-32 Thread 1/8" Long Hex Screw For Use With 241-00-052
Estimate Shipping
Price: $4.49
138 in stock
Sold As:
1 Screw
Part Number: FPS241021102
MFG Number:
241-02-110-2
California Prop 65 Warning: This item may cause cancer or reproductive harm. For more info visit p65warnings.ca.gov The above image is a representation of this item. Actual item may vary. If it's crucial to what you're working on, call the store at 951-737-RACE, and one of our sales reps will be happy to email you a current photograph. Product Information:
Always make sure that the threads of the screws do not stick through the internal bypass body, otherwise the wear band on the shock's piston will be destroyed.

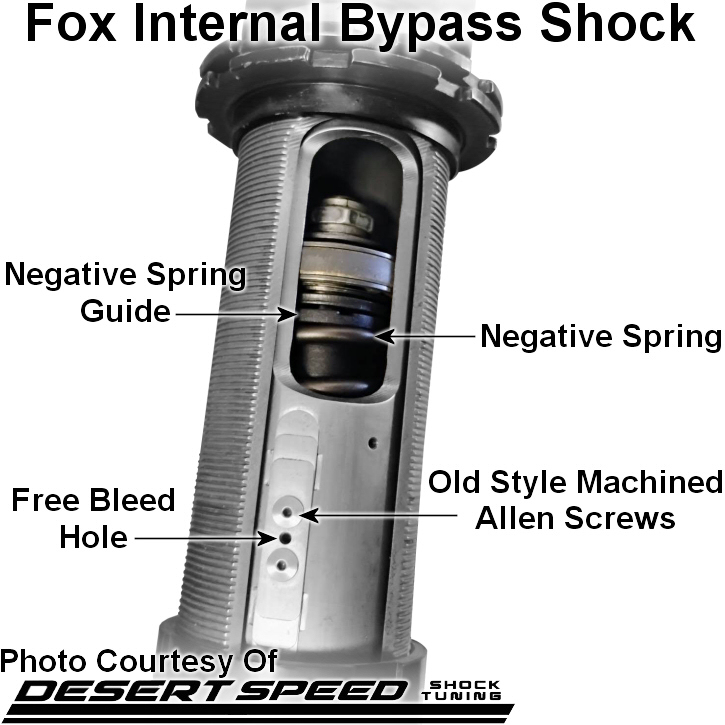

This gold anodized screw replaces the old style stainless steel button head socket screws (allen screws). Fox used to take a standard off the shelf stainless button head and machine down the head to make it thinner (roughly 0.080" head thickness down to 0.050" head thickness). The thickness of the head on the new hex screws is 0.050" but the tab that goes underneath the screw adds 0.020".
You use these gold anodized screws with the 241-00-052 locking tab (sold separately). The tab folds over to prevent the screws from backing out. The tab is 0.020" thick. The two mounting holes are 1/2" on center. It will work with the 077 series shims or the 073 series shims that have two mounting holes and a center free bleed hole.
You use these gold anodized screws with the 241-00-052 locking tab (sold separately). The tab folds over to prevent the screws from backing out. The tab is 0.020" thick. The two mounting holes are 1/2" on center. It will work with the 077 series shims or the 073 series shims that have two mounting holes and a center free bleed hole.
