Billet Aluminum 7-1/8" Wide Engine Breather Box With Shielded Filters And Three 3/8" NPT Pipe Inlets

City:
State:
Province:
Postal Code:
Country:
Residential?

Price: $57.99

10 in stock

Sold As: 1 Breather With 2 Filters

Part Number: KTKBBWF

California Prop 65 Warning: This item may cause cancer or reproductive harm. For more info visit p65warnings.ca.gov The above image is a representation of this item. Actual item may vary. If it's crucial to what you're working on, call the store at 951-737-RACE, and one of our sales reps will be happy to email you a current photograph.

Product Information:

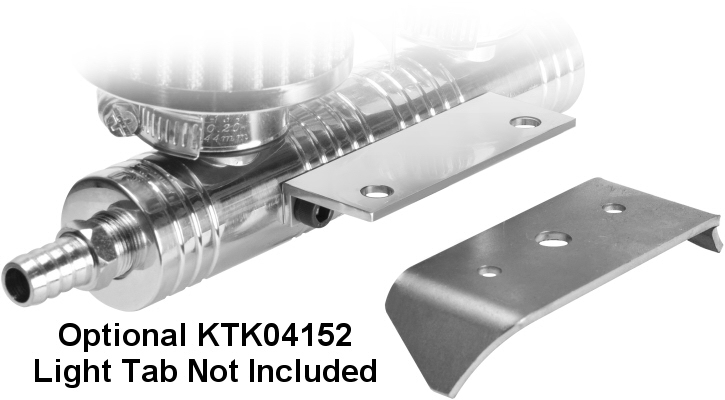

Tube type billet aluminum engine crankcase breather. There are no baffles inside the pipe. It comes with two chrome top, half shielded, breather filters and barbed fittings for 1/2" hoses. You can ditch the barb fittings and run 3/8" NPT to AN #8 fittings instead, but the AN #8 fittings are sold separately. Customers will often purchase our KTK04152 weld-on light tab and redrill the holes in it for this breather.

Dimensions:

Width: 7-1/8" not including fittings
Diameter: 1-1/2"
Height: 5" not including fittings
Ports: three 3/8" pipe thread
Flange width: 3-1/2"
Flange depth: 1-1/4" from the body
Flange holes: 5/16"
Flange hole width: 2-1/2" on center

EMPI 16-5153-0 billet aluminum engine breather box mounting tab
