Peterson Fluid Systems 08-0400 Large 4" Engine Breather Canister With Two #12 Inlets And Oil Drain
Estimate Shipping
Price: $374.99
3 in stock
Sold As:
1 Breather Canister
Part Number: PET080400
MFG Number:
08-0400
California Prop 65 Warning: This item may cause cancer or reproductive harm. For more info visit p65warnings.ca.gov The above image is a representation of this item. Actual item may vary. If it's crucial to what you're working on, call the store at 951-737-RACE, and one of our sales reps will be happy to email you a current photograph. Product Information:
Peterson's 08-0400 canister is their most popular breather. Used in many different applications to vent both dry sump oil tanks and engines. It's the top choice for offroad racing teams.

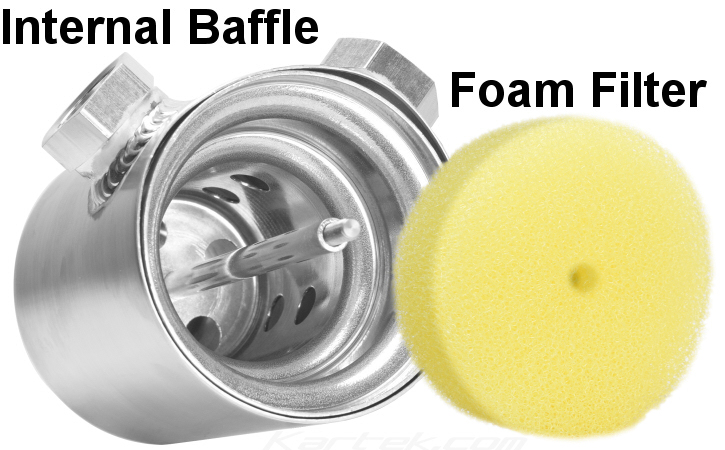

There are two AN -12 ORB o-ring boss inlets (1-1/16"-12 thread) on the sides. The bottom has a single -6 ORB o-ring boss allen head drain plug (9/16"-18 thread). Inside the main body is an additional baffle insert with a foam air filter.
There are two AN -12 ORB o-ring boss inlets (1-1/16"-12 thread) on the sides. The bottom has a single -6 ORB o-ring boss allen head drain plug (9/16"-18 thread). Inside the main body is an additional baffle insert with a foam air filter.
Peterson does include a steel -6 allen head drain plug, however customers often purchase Fragola's 481426BL -6 ORB to 1/8" NPT adapter fitting and CBR's 1/8DVALVE finger-actuated drain cock valve. That allows you to quickly drain the 08-0400 tank just like Peterson's 08-0410 small 3" breather canister.
We sell a wide variety of adapter fittings for many different applications. #12 ORB to #12 male is the most common.
We sell a wide variety of adapter fittings for many different applications. #12 ORB to #12 male is the most common.
Dimensions:
Overall height: 6-3/4" not including the nut on top
Body diameter: 4-1/16"
Lid diameter: 4-5/8"
Side port threads: 1-1/16"-12 (AN -12 o-ring boss)
Bottom drain port thread: 9/16"-18 (AN -6 o-ring boss)
Strap: 3/8" holes 3-1/2" on center
Accessories:
Replacement strap part number 08-0402
Fragola 495114: -12 ORB to -6 male
Fragola 495115: -12 ORB to -8 male
Fragola 495107 / Peterson 08-0501: -12 ORB to -10 male
Fragola 495109 / Peterson 08-0502: -12 ORB to -12 male
Fragola 495120 / Peterson 08-0503: -12 ORB to -16 male
Fragola 481426: -6 ORB to 1/8" female NPT
1/8DVALVE drain cock valve
