Baja Designs 10-3001 RTL-B Brake And Tail Light, Solid Amber, Blue Warning Light, Flashing Amber

Improve safety during your offroad adventures or races with the Baja Designs LED RTL, or Rear Tail Light, offering enhanced visibility at the rear of your vehicle. Visibility is paramount when navigating trails, and the amber light's ability to penetrate dust or fog adds an extra layer of safety when racing.

Blue or green lights are used to designate slow moving vehicles. Confirm with your racing association which color they require.

Wiring comes out of the left driver side of the bar. There are four wires with bullet terminals. The center blue section can be switched on independently from the rest of the light bar. The running lights MUST be powered on for the brake lights to function. On this particular bar, the left amber dust light is always on with the taillights. The right amber dust light quickly flashes. You do NOT need to purchase a separate flasher relay. It is built into that segment of LED lights.

Wiring

• Black = ground
• Red = running lights (red and amber lights)
• Yellow = brake lights
• Blue = blue center segment

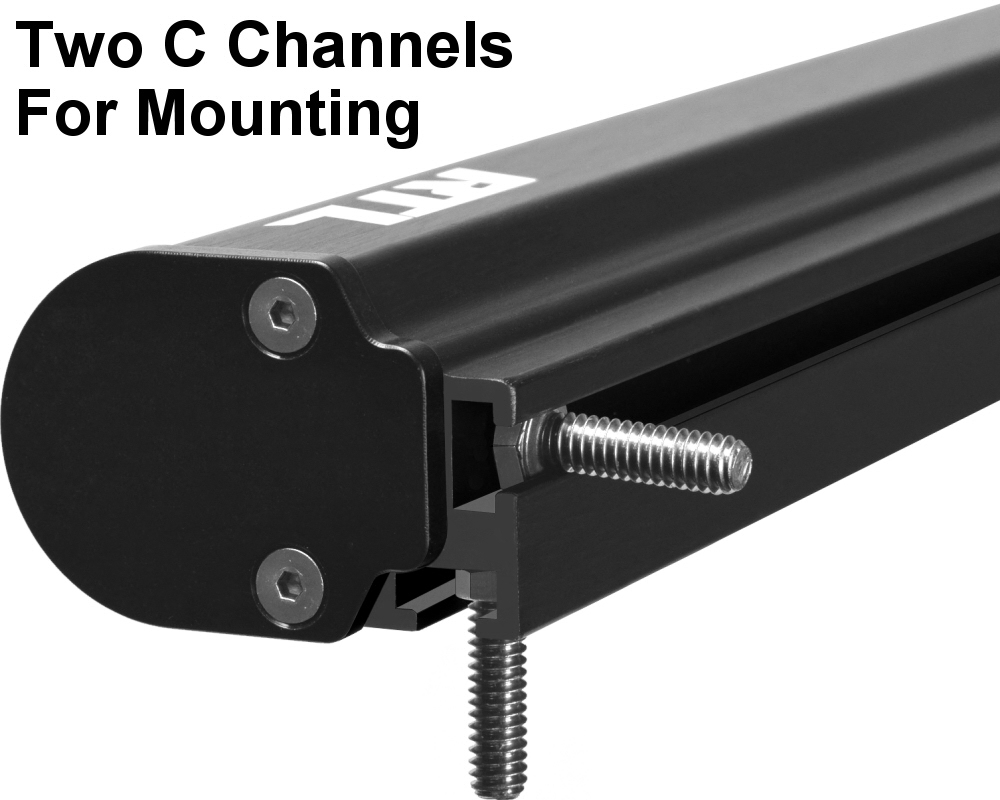

There are two c-channel slots that run the full width of the light bar. This allows you to mount the bar with tabs directly below the bar or behind the bar at any width. Ideally at 25" on center to prevent damage to the aluminum extrusion. The two supplied bolts are 1/4" x 7/8" long. Customers often pick up 1/4" x 2" bolts at a local hardware store and drill two holes straight through the 1-1/2" tube that's on the back edge of their roof on a buggy or truck. The light bar is 1-1/2" thick and this results in a really clean install job.

Specifications

Assuming watts ÷ 13.8 volts = amps. The RTL can run at 9 to 36 volts
