Peterson Fluid Systems 08-9016 Dirt Late Model 4 Gallon 9" x 20" Dry Sump Oil Tank With Filter

Peterson Fluid Systems 08-9016 Dirt Late Model 4 Gallon 9" x 20" Dry Sump Oil Tank With Filter
Rough Shipping Estimate
Estimate Shipping
Price: $1,949.99
2 in stock
Sold As: 1 Tank with internal and external filters

Part Number: PET089016

MFG Number: 08-9016


Order this item to pickup at our Corona, CA store. You'll pay when you get here. You can pay by credit card, cash or PayPal and we'll contact you when this order is ready for pickup.


California proposition 65 warningCalifornia Prop 65 Warning: This item may cause cancer or reproductive harm. For more info visit p65warnings.ca.gov The above image is a representation of this item. Actual item may vary. If it's crucial to what you're working on, call the store at 951-737-RACE, and one of our sales reps will be happy to email you a current photograph.



Product Information:

Peterson's filter tank for Dirt Late Models features a high flow cleanable 100 micron internal return filter, a built in dipstick makes checking your oil level easy and radiused full flow fittings eliminate back pressure on the return lines.

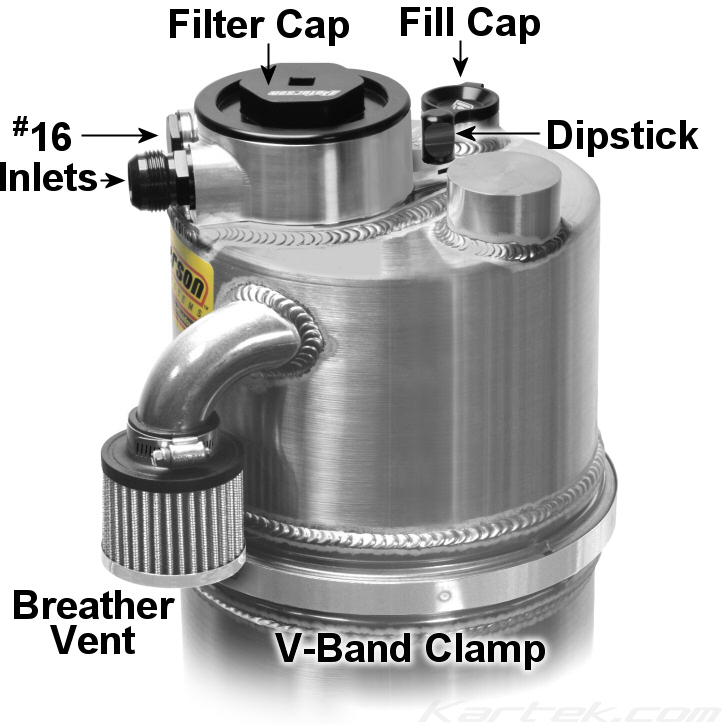

Features:

  • All aluminum light weight construction
  • Hand tig welded and pressure tested
  • Fully baffled inside for oil and air control
  • Built in 8-3/8" long dipstick
  • Internal cleanable return oil filter
  • 1/2" NPT heater bung opposite side of outlets
  • AN #10 and AN #16 outlets towards the bottom edge
  • Two AN #16 inlets on filter housing
  • 1-7/16" billet aluminum o-ring sealed oil filler cap
  • Breather filter is 2-1/2" tall 3" diameter with 1-1/2" opening
  • AN #12 ORB drain plug on bottom
  • V-Band clamp allows you to easily clean inside the tank or clock the inlet fittings in a different direction than the outlet fittings

    • Peterson Fluid Systems 08-9016 dirt late model 4 gallon dry sump oil tanks top view

    Notes:

  • The tank does NOT come with any type of mounting brackets
  • If you're not going to use the 1/2" NPT pipe thread bung for an immersion heater or an oil temperature sender, you'll also need to purchase a 1/2" NPT plug
  • If you're not going to use the #10 outlet, you'll need to purchase a female cap
  • Includes a part number 19-5100 100 micron oil filter. Use a 1/2" drive ratchet to turn the oil filter cap
  • Includes a 8-3/8" long dipstick. You turn the dipstick a half turn CLOCKWISE with your fingers to pull it out of the tank
  • We also sell 1-1/2" silicone hose couplers and aluminum tubing if you want to extend the breather to help prevent oil from coming out of the tank in the event of a rollover

  • The tank includes two removable Peterson R4 #16 inlet fittings and a plug which allows you to run two inlets or you can plug one of them. Those fittings and plug are a shallow 1-1/8" x 18 thread. Peterson does offer different fittings (sold separately)

    • Part number 14-0002 is a 1-1/8" x 18 plug (included)
    Part number 14-0006 is a -6 male fitting
    Part number 14-0008 is a -8 male fitting
    Part number 14-0010 is a -10 male fitting
    Part number 14-0012 is a -12 male fitting
    Part number 14-0016 is a -16 male fitting (included)
    Part number 14-0020 is a -20 male fitting

    Peterson Fluid Systems R4 AN fittings
