Broke Chromoly Mounting Tab 5/16-18 Coarse Thread Fixed Position Nut 1/8" Thick Sold Individually
California Prop 65 Warning: This item may cause cancer or reproductive harm. For more info visit p65warnings.ca.gov The above image is a representation of this item. Actual item may vary. If it's crucial to what you're working on, call the store at 951-737-RACE, and one of our sales reps will be happy to email you a current photograph. Product Information:
This tab has broke edges to sit on the side of a tube. Sometimes referred to as a trick tab. It has a fixed position permanent nutsert pressed into it for easier panel installation and removal.

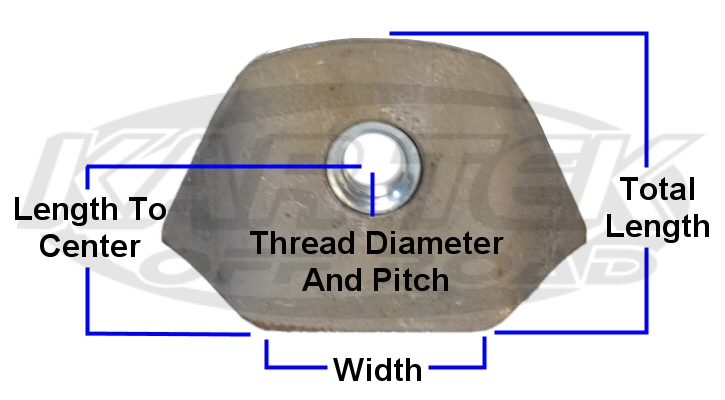

Specifications:
Material: Chromoly Steel
Thickness: 1/8"
Thread Diameter And Pitch: 5/16"-18 Coarse Thread
Width: 1"
Length To Center: 11/16"
Total Length: 1-5/16"
Specifications:
Material: Chromoly Steel
Thickness: 1/8"
Thread Diameter And Pitch: 5/16"-18 Coarse Thread
Width: 1"
Length To Center: 11/16"
Total Length: 1-5/16"

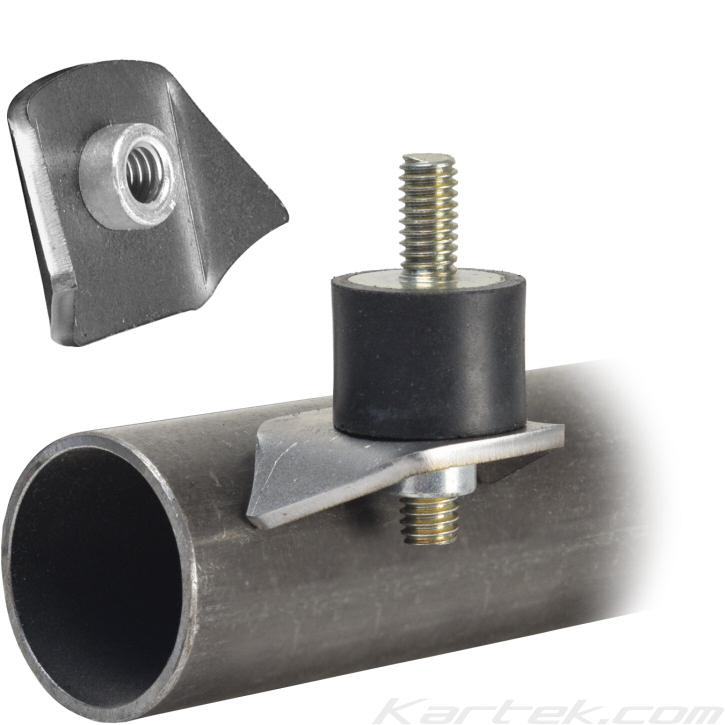

We also sell rubber anti vibration isolators (sold separately) that have 5/16-18 studs on both ends to install on engine, transmission or differential oil coolers and heat exchangers.
Combined with these nut tabs, they work great for mounting oil coolers to your tube chassis.
Combined with these nut tabs, they work great for mounting oil coolers to your tube chassis.
