Kartek Offroad 1.5:1 Ratio Hard Anodized End Load Rack And Pinion For A-Arm Sand Cars

Kartek Offroad 1.5:1 Ratio Hard Anodized End Load Rack And Pinion For A-Arm Sand Cars
Rough Shipping Estimate
Estimate Shipping
Price: $419.99
In Stock
Sold As: 1 Rack and Pinion

Part Number: KTK641022SU



Order this item to pickup at our Corona, CA store. You'll pay when you get here. You can pay by credit card, cash or PayPal and we'll contact you when this order is ready for pickup.


California proposition 65 warningCalifornia Prop 65 Warning: This item may cause cancer or reproductive harm. For more info visit p65warnings.ca.gov

Description

Our billet 6061 aluminum end load steering rack and pinion for A-arm front steer sand rails.

    Specs:
  • American Made
  • Fully Rebuildable
  • 3/4" 48 Spline Pinion
  • Depth: 3" (not including pinion or face plate)
  • Width: 7-7/8" (body only)
  • Travel: 4-3/4"
  • Standard 6" x 1" mounting pattern
  • Uses 3/8" bolts and nuts
  • Tie Rod Mounting Holes: 1/2"
  • Clevis Width: 7/8"
  • Tie Rod Mounting Hole Width: 14-1/2" on center
  • Tie rods must be in FRONT of spindles
  • Approx. 1-3/4 Turns lock to lock

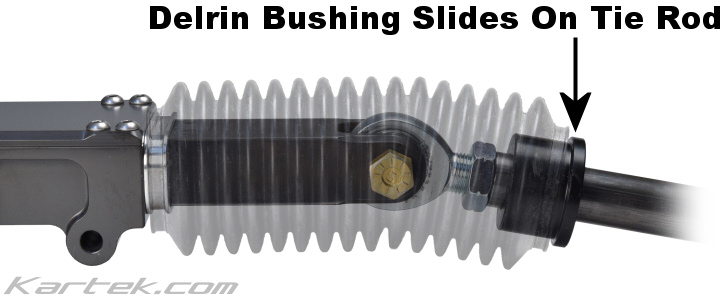

Use KTK60414200 bushings (sold separately) to reduce the diameter from 1-3/4" to 1" on the tie rod side of the boots. Or you can use Daystar's shock boot part number KTKBOOT (sold separately) with KTK500F bushings (sold separately) to reduce the diameter from 1-1/4" to 3/4" on the tie rod side of the boots. You'll clamp the boot to the delrin bushing, but you'll allow the delrin bushing to glide up and down the tie rod to prevent the boot from tearing.

kartek off-road end load steering rack and pinion for sandrails and buggies boot setup
