IMI Performance 101NMRHD 2.68HP 12V High Torque High Speed Starter For Bug, 002 Bus, Mendeola

California Prop 65 Warning. This item may cause cancer or reproductive harm. For more info visit https://www.p65warnings.ca.gov/

IMI Performance 101NMRHD 2.68HP 12V High Torque High Speed Starter For Bug, 002 Bus, Mendeola

Suggested: $449.99 Kartek Price: $384.99

Sold As: 1 Starter

Part Number: KTKIMI101NMRHD

MFG Number: 101-NMRHD



IMI Performance 101NMRHD 2.68HP 12V High Torque High Speed Starter For Bug, 002 Bus, Mendeola
This is HiTorque's 101NMRHD extreme duty offroad self supporting gear reduction starter. HiTorque does offer the 101 with three different size motors depending on your needs. See below picture for reference. This starter is self supporting. In a VW transmission you don't need to run the bronze support bushing that normally holds the other side of the starter.

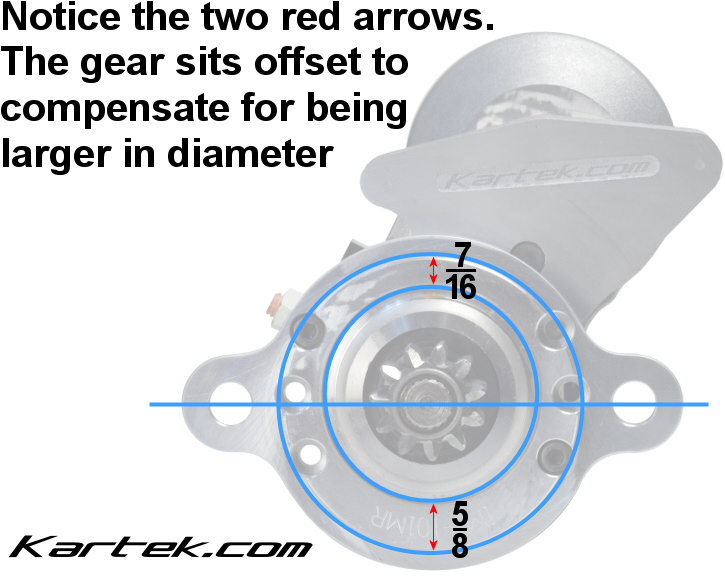

HiTorque originally developed this starter for Mazda rotary engines to spin them faster. Now it has become a favorite in the offroad racing industry to spin any motor running a VW style 130 tooth flywheel faster. This 11 tooth gear packs a serious punch. To fit the larger diameter 11 tooth gear, HiTorque offset their mounting flange. Because of that, this starter WILL NOT work on Fortin Racing transmissions. The gear hits the inside of the bell housing.

imi performance products inc hitorque 101nmr starters for vw mendeola pbs weddle industries transaxles transmissions offset gear explanation
Specifications
  • Rotation: CCW
  • Kilowatts: 1.97
  • Horsepower: 2.68
  • Voltage: 12v
  • GP11-NMR Eleven Tooth 29.8mm Gear
  • Fits 12 Volt 130 Tooth VW Style Flywheels
  • 5/16" Battery Cable Post

  • Fits Transaxles:
  • Mendeola
  • PBS
  • VW Type 1 Beetle IRS or Swing Axle
  • VW Type 2 Three Rib 002 Bus
  • Weddle Industries

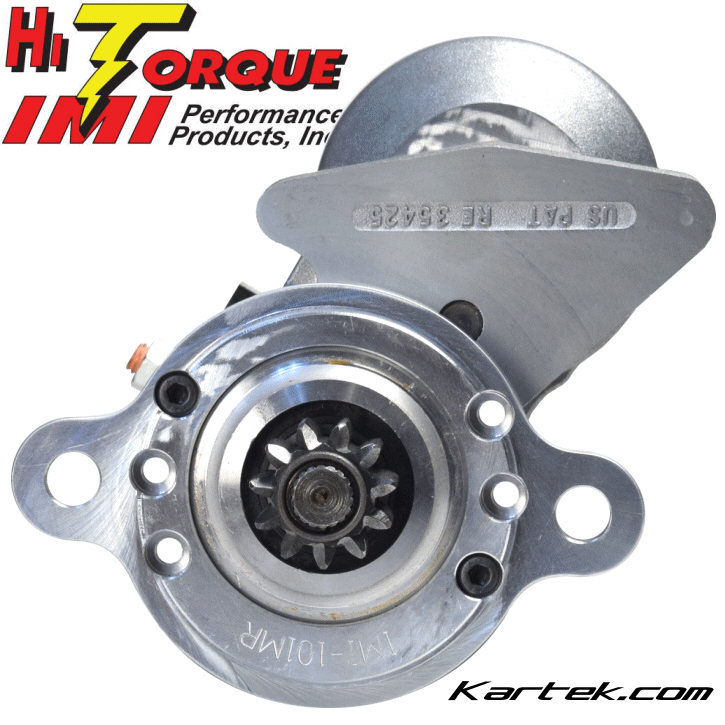

  • The mounting flange on HiTorque's starters can be rotated to several positions allowing you to move the starter's motor out of the way of any chassis braces that might be in the way.

    imi performance products inc hitorque starters rotating flange

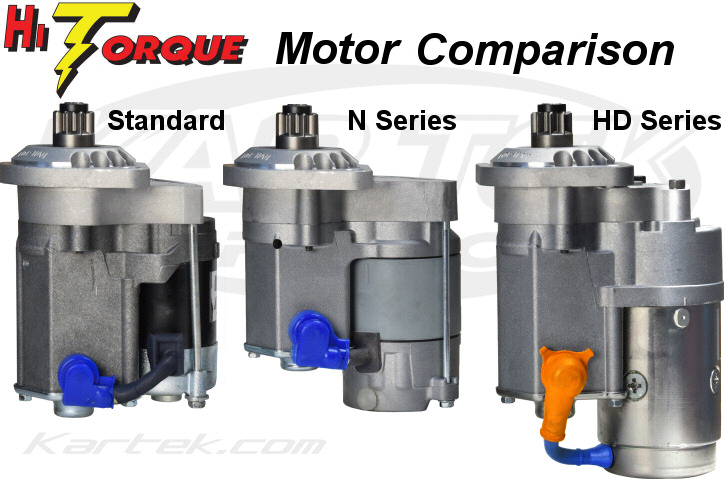

    imi performance products inc hitorque starters solenoids comparison
