FPS 226-00-095 Reservoir End Cap For Stepped 2-1/2" Aluminum Reservoirs Requires Pellet And Retainer
Estimate Shipping
Price: $16.49
Call us for availability BEFORE you order this item! We may be low or out of stock on it.
Sold As:
1 Empty Cap
Part Number: FPS22600095
MFG Number:
226-00-095
California Prop 65 Warning: This item may cause cancer or reproductive harm. For more info visit p65warnings.ca.gov The above image is a representation of this item. Actual item may vary. If it's crucial to what you're working on, call the store at 951-737-RACE, and one of our sales reps will be happy to email you a current photograph. Product Information:

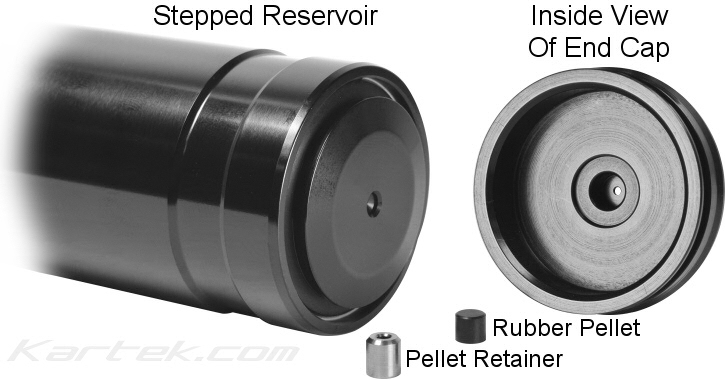

Empty aluminum end cap for 2-1/2" stepped ALUMINUM reservoirs. Uses 010-00-000-A rubber pellet, 010-00-032 pellet retainer, 038-01-052 wire clip, and 029-03-226-A o-ring. The rubber pellet goes into the retainer and the retainer presses into the inside of the reservoir cap. We also sell a Schrader valve conversion kit, part number 803-00-977, if you want to use conventional nitrogen fillers instead of the needle tool.
This cap fits the 2.31" inside diameter internal STEPPED reservoir only. On the stepped reservoirs, the main chamber is 2.25" but down towards the end of the reservoir sleeve, the inside is stepped to 2.31" inside diameter.
This cap fits the 2.31" inside diameter internal STEPPED reservoir only. On the stepped reservoirs, the main chamber is 2.25" but down towards the end of the reservoir sleeve, the inside is stepped to 2.31" inside diameter.
-
Fits STEPPED 2.31" ID reservoirs:
- 227-42-080-4
- 227-42-100-4
- 227-42-130-4
- 227-42-140-4
-
Does NOT fit 2.25" ID reservoirs:
- 227-43-050-2
- 227-43-070-2
- 227-43-080-2
- 227-43-100-2
- 227-43-140-2
- 207-81-070-2
- 207-81-080-2
- 207-81-100-2
- 207-81-140-2
