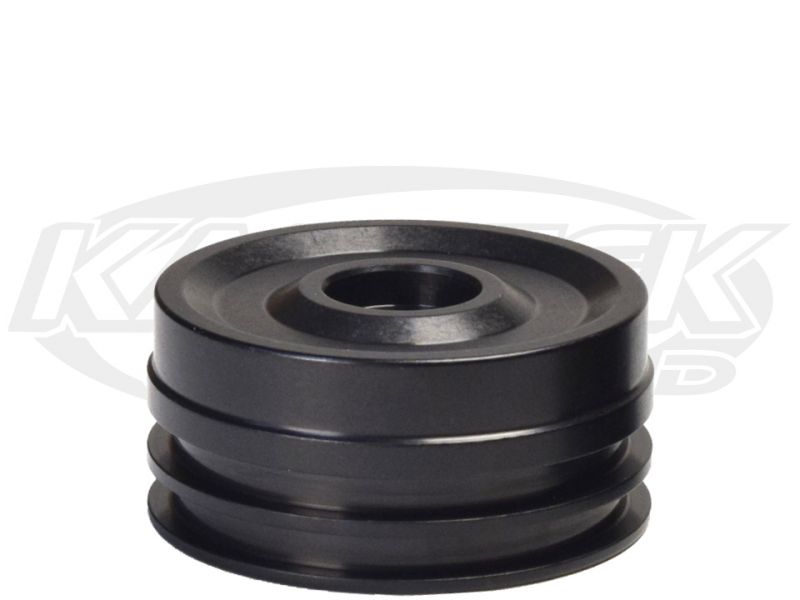

Fox Schrader Air Valve Billet Aluminum Protective Cap Uses 029-03-115-A O-Ring
Estimate Shipping
Price: $12.00
Add to cart to see a lower price
32 in stock
Add to cart to see a lower price
Sold As:
1 Schrader Cap
Part Number: FOX01000223A
MFG Number:
010-00-223-A
California Prop 65 Warning: This item may cause cancer or reproductive harm. For more info visit p65warnings.ca.gov
Description
This cap uses o-ring part number 029-03-115-A (not included). Fox used this cap on external bypass shocks to protect the Schrader valve from getting broken off by debris. It will work on any piggyback or remote reservoir shock that has a FLAT end cap for the Schrader valve with 9/16" to 5/8" of the valve stem sticking above the cap.
It clears the 9/16" hex on Schrader valves that are 7/16"-20 ORB.
When Fox switched to 5/16"-32 ORB o-ring boss valves, they countersunk the Schrader into the end cap and the 010-00-223-A protective cover will not work on those style end caps. The thread of the Schrader valve won't reach the 010-00-223-A protective cap and because of the dome that's machined into the end cap, the o-ring on the protective cap wouldn't seal against it.
When Fox switched to 5/16"-32 ORB o-ring boss valves, they countersunk the Schrader into the end cap and the 010-00-223-A protective cover will not work on those style end caps. The thread of the Schrader valve won't reach the 010-00-223-A protective cap and because of the dome that's machined into the end cap, the o-ring on the protective cap wouldn't seal against it.
