Fox Racing BOC Shocks 2" Coil Over Body 8.5" Stroke 5/8" Shaft With DSC Piggy Back Reservoir

Note: We normally don't stock this shock. It is built by Fox and usually the lead time is 4 to 6 weeks. We do stock the 980-02-155 shock which we can add the adjuster or BOC to in-house and ship by the next business day. However the cost is a little more for the convenience.

Fox Racing BOC Shocks 2" Coil Over Body 8.5" Stroke 5/8" Shaft With DSC Piggy Back Reservoir

Suggested: $490.95 Kartek Price: $489.95

Sold As: 1 Fox Coil-Over Shock With DSC Adjuster and BOC Installed

Part Number: FOX98306003

MFG Number: 983-06-003
CA Prop 65 Warning

Fox Racing BOC Shocks 2" Coil Over Body 8.5" Stroke 5/8" Shaft With DSC Piggy Back Reservoir
From the finish line at the Indy 500 to the deserts of Dakar, FOX coil-over shocks have proven themselves as winners year after year. FOX engineers work only with the best spring manufacturers to develop winning spring/shock combinations. Whether you are upgrading your daily driver or building an unlimited trophy truck, FOX has a coil-over shock to fit your needs.

Note: The shock is longer than your average 8.5" stroke shock because the shock body has to be longer to fit the BOC cup and piston.

Factory Series 983-06-003 Dimensions:
Setup For Dual Spring Rate
21" Maximum Combined Total Spring Length
Typically Customers Purchase 8" Top Spring and 12" Bottom Spring
2.0" Diameter
8.0" Travel
26.140" Extended
17.670" Collapsed
2" x 8" Reservoir
0.625" Shaft Diameter
1.25" Mounting Width Between Tabs
Uses 1/2" Shock Bolts
Fox Piggy Back Rotating Reservoir with DSC Adjuster

DSC Adjuster Note: When Fox says "low-speed" and "high-speed" they're referring to the shock shaft's velocity moving up and down. NOT the vehicle's speed. If you're cruising through the desert and your suspension is slowly moving up and down, then you're using the "low-speed" flat head screw driver adjustment on the adjuster. If you launch your vehicle and the suspension moves quickly upwards, then you're using the "high-speed" 17mm hex adjustment on the adjuster.

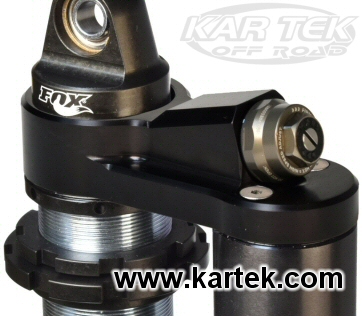

Fox DSC Dual Speed Compression Adjuster
26 clicks high speed compression adjustability and 22 click low speed compression adjustability allows you to fine tune your ride from very soft to very firm. The best part is, you can adjust your Fox shock without having to take it apart! Ideal for people with 4 seat sand rails, dune buggies, baja bugs, jeeps, or rock crawlers. When you have 4 passengers adjust the compression stiffer to compensate for the extra passenger weight. When you drive alone or only have 1 passenger, adjust the compression softer for a softer ride.
Fox Shocks dual speed compression DSC adjuster
Bottom-Out Control FOX's bottom-out control provides extra resistance against bottom-outs. As the shock is compressed, the secondary piston will enter the bottom-out cup in the final 25% of travel to produce up to 3000 lbs of additional damping force. This allows the shocks to be tuned to give improved small bump compliance in the upper portion of the stroke, while still maintaining the ability to absorb huge impacts effectively.
Fox Shocks BOC Bottom Out Control Animation
