Thick Edge 17-4 Stainless Steel Cone Spacer For 1" Heim Or Uniball For 3/4" Bolt 2-1/2" Stack Height

Thick Edge 17-4 Stainless Steel Cone Spacer For 1" Heim Or Uniball For 3/4" Bolt 2-1/2" Stack Height

Suggested: $39.99 Kartek Price: $34.99

Sold As: 1 Spacer

Part Number: PRM10034SRTHD250





Thick Edge 17-4 Stainless Steel Cone Spacer For 1" Heim Or Uniball For 3/4" Bolt 2-1/2" Stack Height
Cone spacers are designed for suspension joints, steering tie rod ends and anything else that uses the pivot of a spherical bearing such as heim joints, rod ends and uniballs where a lot of angle isn't required unlike a high misalignment spacer. They reduce the hole size to accommodate a smaller bolt.

We offer a wide variety of high misalignment spacers and straight spacers for almost every possible application.

Important Notes:
  • Not all spacers will fit every uniball or heim joint.
  • The stack height or width in the title of the page is a nominal dimension. See below for actual decimal dimension.
Specifications:
  • Material: 17-4 Heat treated stainless steel
  • (A) Shoulder Height: 0.565"
  • (B) Head Diameter: 1.740"
  • (C) Half The Stack Height: 1.250"
  • Nominal Stack Height: 2-1/2"
  • Actual Stack Height: 2.500"
  • (D) Bolt Size: 3/4"
  • (E) Heim Or Uniball Size: 1"
  • (F) Depth: 0.6875"
How to measure misalignment spacers for fk rod ends aurora bearing company and nhbb new hampshire ball bearing

Stack height or stack width, depending on which way you look at it, is an important dimension for you to know for the length of the bolt you'll need plus the gap that you'll need in order to put the rod end or uniball on your vehicle.

We sell the spacers individually because occasionally customers will use two different heights of spacers on one rod end or uniball to achieve the stack height required for their vehicle.

Will Fit:
  • Aurora Bearing Company
  • FK Rod Ends
  • NHBB New Hampshire Ball Bearings

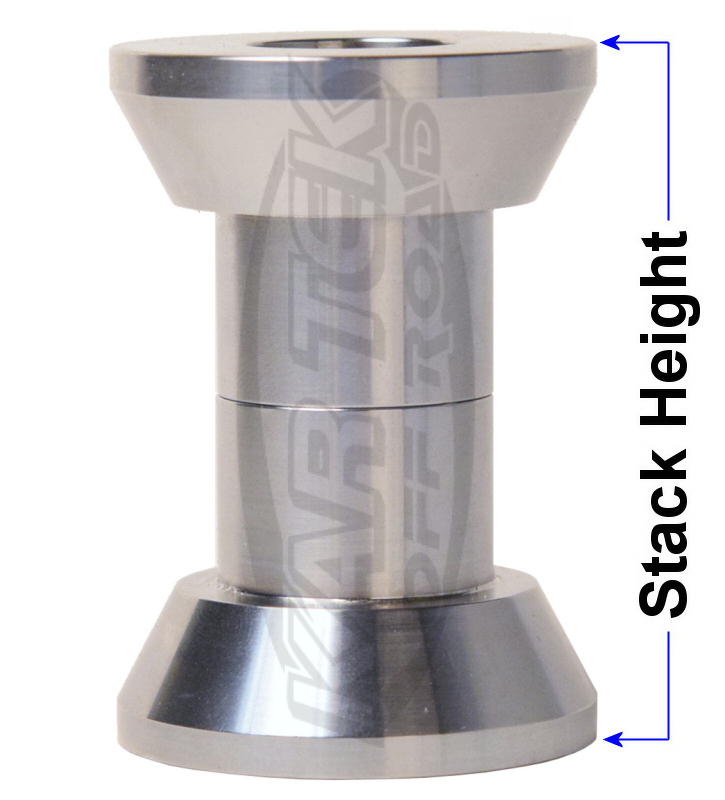

Stack height or width
