Broke Chromoly Mounting Tab 5/16-24 Fine Thread Fixed Position Nut 1/8" Thick Sold Individually

Broke Chromoly Mounting Tab 5/16-24 Fine Thread Fixed Position Nut 1/8" Thick Sold Individually

Suggested: $9.99 Kartek Price: $8.99

Sold As: 1 Mounting Tab

Part Number: PRM094515





Broke Chromoly Mounting Tab 5/16-24 Fine Thread Fixed Position Nut 1/8" Thick Sold Individually
This tab has broke edges to sit on the side of a tube. Sometimes referred to as a trick tab. It has a fixed position/permanent nut similar to a nutsert for easier panel installation and removal. You'll notice the threads are intentionally oblong to create a sort of lock nut almost like a stover nut.

Specifications:
Material: Chromoly Steel
Thickness: 1/8"
Thread Diameter And Pitch: 5/16"-24 Fine Thread
Width: 1-1/8"
Length To Center: 11/16"
Total Length: 1-1/4"

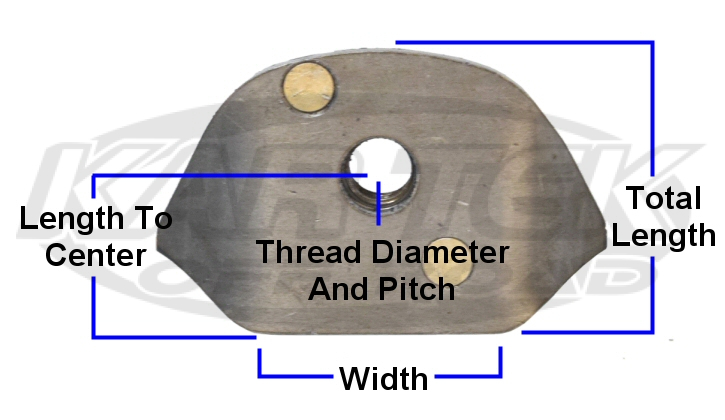

Nutsert Mounting Tab Dimensions
