Wilwood 340-14768 Single Angled Handle Handbrake For Drift Cars, Drag Racing, Rally Cars And Offroad

Wilwood handbrake levers provide a lightweight component for drifting, drag racing (as a staging brake), rally cars, or any vehicle where hand actuation of one or more brake calipers is needed. It has a lightweight forged aluminum "H" beam lever and an ergonomic grip. Available in a choice of an upright vertical or an angled horizontal lever position.

Includes a 5/16"-24 female thread to 3/8" hole heim joint with a 3/8" diameter clevis pin. You must purchase a master cylinder separately.

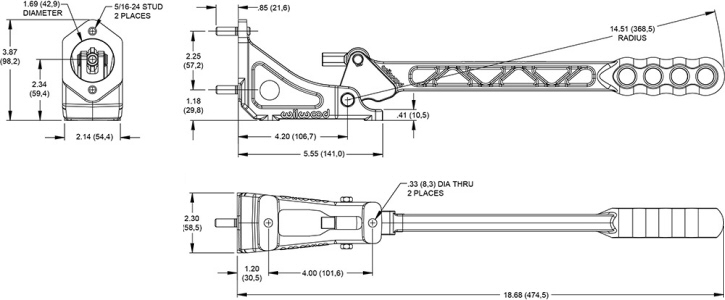

Dimensions:
• Master cylinder mounting surface to front of handle: 18-11/16"
• Lever pivot to center of hand grip: 12-1/4"
• Lever pivot to center of MC push rod: 1-5/8"
• 12-1/4" ÷ 1.625" = 7.54:1 Ratio
• Base: 2-5/16" wide 5-1/2" long not including a master cylinder
• Uses a standard 2-1/4" vertical bolt pattern cylinder
• Uses a 5/16" pushrod for the master cylinder
• Uses 5/16" bolts to secure a master cylinder

Pulling effort in pounds:
Ratio: 7.54:1
Master cylinder bore: 1/2" 5/8" 11/16" 3/4" 13/16" 7/8" 15/16" 1" 1-1/16" 1-1/8"

Results
