Wilwood 340-14744 Single Handle 3/4" Bore Steering Brake With Straight Upright Handle

Wilwood 340-14744 Single Handle 3/4" Bore Steering Brake With Straight Upright Handle

Suggested: $299.93 Kartek Price: $259.99

Sold As: 1 Steering Brake

Part Number: WIL34014744

MFG Number: 340-14744
CA Prop 65 Warning




Wilwood 340-14744 Single Handle 3/4" Bore Steering Brake With Straight Upright Handle
Direct replacement for CNC 422 steering brakes. Wilwood's single handle steering brake is an all aluminum unit. It features a thick firm grip handle and knob along with a black anodized housing. Steering brakes give a driver greater control over a vehicle by allowing the vehicle to turn in a much tighter turning radius by applying brakes to the inside rear wheel while using the throttle to give more power to the outside wheel. This is ideal in situations like tight canyons, sand dunes, drifting, or selective braking for rock crawlers.

All three ports of this steering brake are tapped for 1/8" NPT pipe thread. You will need to purchase adapter fittings for your brake lines.

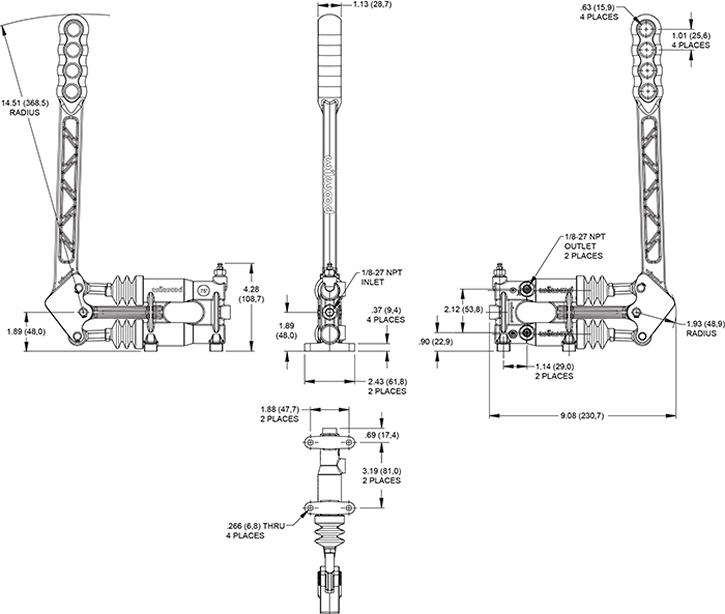

wilwood 340-14744 single handle upright steering cutting turning brake dimensions
