One Bolt Stepped Round Pinch Bungs Right Hand Thread For 3/4" Heim Joint In 1-1/2" 0.120" Wall Tube

One Bolt Stepped Round Pinch Bungs Right Hand Thread For 3/4" Heim Joint In 1-1/2" 0.120" Wall Tube
Price: $89.99
Sold As: 1 Threaded Bung

Part Number: KTK750TBTT




California proposition 65 warningCalifornia Prop 65 Warning: This item may cause cancer or reproductive harm. For more info visit p65warnings.ca.gov

Description

Pinch bungs use a clamping design instead of a jam nut to prevent the heim joint from rotating. Besides tie rods, threaded bungs can be used to make sway bar links, pan hard bars, 3 link, 4 link, 5 link, trac bars, drag links, trailing arms, ladder bars, or traction bars. Also they're commonly used to make a-arms, upper control arms and lower control arms. Will work with FK Rod Ends, Aurora Bearing Company, or NHBB New Hampshire Ball Bearing.

rod ends and heim joints assembly

Specifications:
Material: Chromoly
Thread: 3/4" -16 Fine Thread
Total Length: 3-5/16"
Shoulder Length: 2"
Head Length: 1-5/16"
Fits Into: 1-1/2" 0.120" Wall Tubing
Base Diameter: 1-1/4"

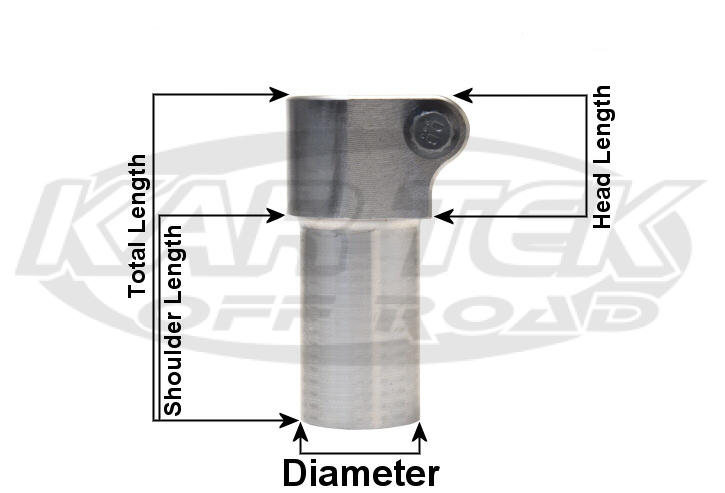

1 bolt round stepped threaded pinch bungs for heim joints or rod ends dimensions

Chromoly Chrome-Moly Chrome Moly
