Blue Sea Systems M-Series Black Dual Battery Cut Off Isolator Switch With Removable Knob

Blue Sea Systems M-Series Black Dual Battery Cut Off Isolator Switch With Removable Knob
Rough Shipping Estimate
Estimate Shipping
Price: $43.99
In Stock
Sold As: 1 Battery Switch

Part Number: BSS6010200

MFG Number: 6010200


Order this item to pickup at our Corona, CA store. You'll pay when you get here. You can pay by credit card, cash or PayPal and we'll contact you when this order is ready for pickup.


California proposition 65 warningCalifornia Prop 65 Warning: This item may cause cancer or reproductive harm. For more info visit p65warnings.ca.gov

Description

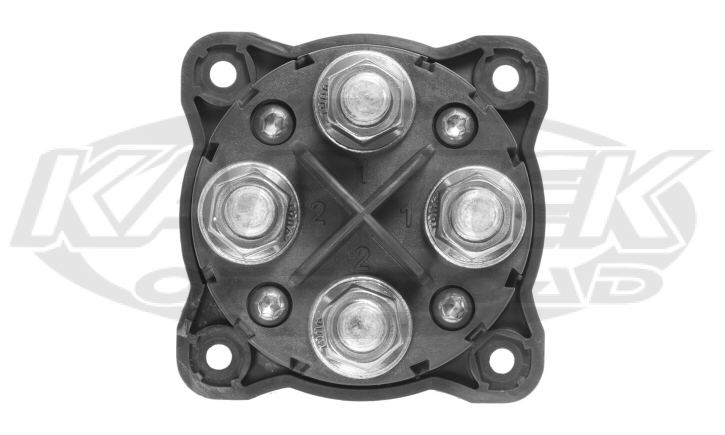

Blue Sea Systems 6010 Dual Battery Switch

    Features:
  • Simultaneously switches two isolated battery banks
  • Ignition protected—safe for installation on gasoline powered trucks and buggies
  • Case design allows surface, front panel, or rear panel mounting
  • Isolating cover with snap-on sections protects rear contacts
Blue Sea Systems 6010 Dual Battery Switch
    Specifications:
  • Switch Type: Dual Circuit
  • Color: Black
  • Switch Positions: 2
  • Battery Combine: No
  • Alternator Field Disconnect: No
  • Maximum Voltage: 32V DC
  • Terminal Stud Torque: 120 in-lb (13.56 Nm)
  • Continuous Rating: 300A
  • Intermittent Rating: 450A (5 min)
  • Cranking Rating 10 sec: 1000A
  • Cranking Rating 1 min: 650A
  • Battery Inputs: 2
  • Cable Clearance For 4/0 AWG Cables: 1.12in (28.45 mm)
  • Cable Size to Meet Ratings: 4/0 AWG (120mm*)
  • Mounting Holes: Accept #10 Screw
  • Terminal Stud Size: 3/8" - 16 (M10)
  • Weight: 0.80lb (0.36 kg)
