Baja Designs 80-0007 Reflex Single Linear Actuator Kit For Their XL Standard Series Light Housings
Estimate Shipping
Price: $124.95
3 in stock
Sold As:
1 Actuator Kit For 1 Light
Part Number: CLS800007
MFG Number:
80-0007
California Prop 65 Warning: This item may cause cancer or reproductive harm. For more info visit p65warnings.ca.gov The above image is a representation of this item. Actual item may vary. If it's crucial to what you're working on, call the store at 951-737-RACE, and one of our sales reps will be happy to email you a current photograph. Product Information:

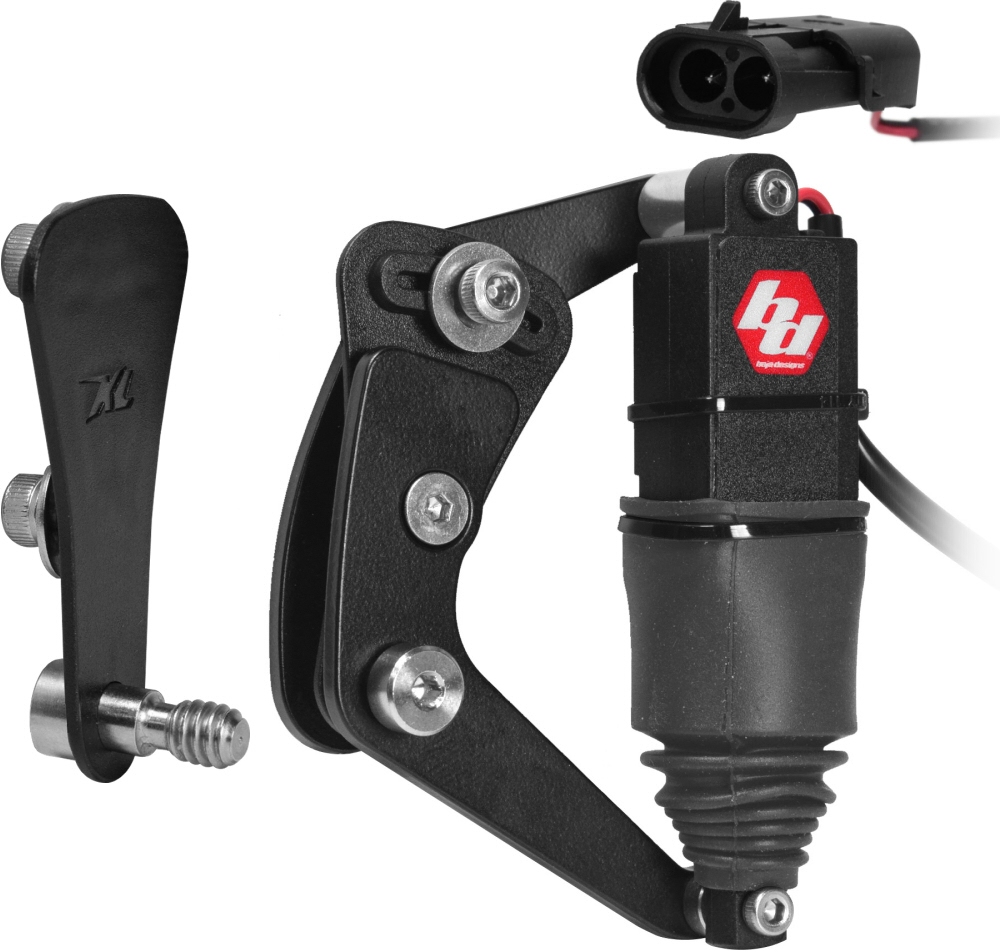

Introducing the 12 volt REFLEX™ light actuator (patent pending) – the first fully compatible actuator system designed exclusively for the Baja Designs light lineup. Born from racing in Baja Mexico, the REFLEX™ brings professional offroad race level engineering to a consumer ready solution. Engineered exclusively for their lights, the REFLEX™ delivers instant, on-the-fly control of light pitch angle. Drivers can adjust their light up to 20 degrees depending on the light type, ensuring perfect light coverage for every terrain change, climb, descent, or high-speed section. The REFLEX™ mounts directly to existing Baja Designs light brackets with included hardware. No fabrication, no guesswork, just clean installation and plug-and-play setup. This actuator is compatible with the XL Pro Standard Series lights.
The light is NOT included. It is shown only for reference. The end of the linear actuator's wiring has a GM Weatherpack 2 circuit shroud housing. You still need to purchase a GM Weatherpack 2 circuit tower housing connector, female terminals, and silicon wire seals.
The brackets that come with the actuator can be mounted on either side of the light's housing. You will need roughly 3/4" of space on one side of your current light bracket to clear the actuator. 1 kit does 1 light.
The brackets that come with the actuator can be mounted on either side of the light's housing. You will need roughly 3/4" of space on one side of your current light bracket to clear the actuator. 1 kit does 1 light.
- 0.14 Amps 2.0 Watts at 13.8 Volts Per Actuator
- MIL-STD-810G IEC Compliant
- Waterproof Rating: IP54
Specifications
You will need a momentary on | off | momentary on switch. You will wire it so that in one direction the switch has standard polarity but in the opposite direction it has reverse polarity. See diagram of how to wire a linear actuator motor. Each actuator only draws 0.14 amps at 13.8 volts. You can run multiple actuators to one switch and have them change pitch angle together or you can wire each actuator to its own switch and adjust each light independently.
