Baja Designs 49-7801-2 White Squadron Pro 2.0 LED Spot Light Set With Wiring Harness

Baja Designs 49-7801-2 White Squadron Pro 2.0 LED Spot Light Set With Wiring Harness
Price: $487.95
Call us for availability BEFORE you order this item! We may be low or out of stock on it.

Sold As: Two Squadron 2.0 Lights With Wiring Harness

Part Number: CLS4978012

MFG Number: 49-7801-2


Order this item to pickup at our Corona, CA store. You'll pay when you get here. You can pay by credit card, cash or PayPal and we'll contact you when this order is ready for pickup.


California proposition 65 warningCalifornia Prop 65 Warning: This item may cause cancer or reproductive harm. For more info visit p65warnings.ca.gov The above image is a representation of this item. Actual item may vary. If it's crucial to what you're working on, call the store at 951-737-RACE, and one of our sales reps will be happy to email you a current photograph.



Product Information:

The Baja Designs Squadron Pro 2.0 is the next evolution of their most trusted compact LED pod light. Completely redesigned from the inside out, the Squadron Pro 2.0 features a new larger housing, next‑generation optics, and a powerful 5921 lumen output at 65W delivering a 41% performance increase over the previous generation Squadron with improved beam control and efficiency. Their next generation optics produce a refined beam pattern that projects light farther and wider while minimizing spill, giving you more usable illumination exactly where you need it.

The backlight can be turned on with the supplied rocker switch or spliced into your existing running light's wire. The wiring harness includes a quick splice terminal. The backlight DOES NOT turn on when the primary lights are on. Once you select one of the nine colors, when you turn the backlights on, whatever color you locked in will turn on. It DOES NOT automatically cycle through the 9 colors.

The backlight is tough to see during the day but at night provides a nice visible glow to each of the Squadron lights.

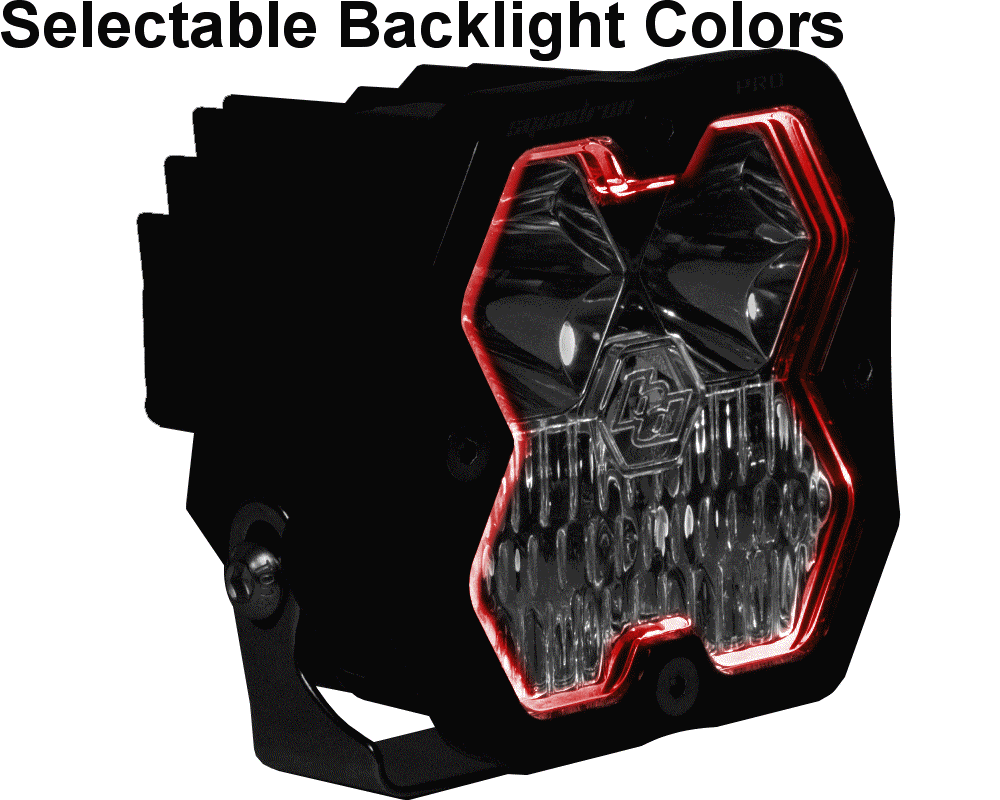

Baja Designs Squadron Pro 2.0 selectable backlight colors
The Squadron complete plug and play kit includes two Squadron Pro 2.0 pod lights, two mounting brackets with a 3/8" hole, and a wiring harness. The wiring harness has Deutsch connectors for the lights, a on-off-on rocker switch (fits into a 7/8" hole) that lights up when the switch is on, a standard 40 amp four blade relay, and a 30 amp inline fuse. The harness has two wires that lead from the battery to the relay and splits into 4 directions for each light, the switch, and a separate wire to tap into your running lights. From the battery to the switch is approximately 10 feet. From the battery to each light is approximately 9 feet.

Squadron Pro 2.0 Specifications:

Assuming watts ÷ 13.8 volts = amps
  • Watts: 65W per light
  • Amps: 4.71 per light
  • Lumens: 5921 per light
  • Primary light voltage: 10-36V
  • Backlight voltage: 11-14V
  • IP rating: IP69K

    • Comparison:

    Squadron Pro
  • Smaller 3" x 3" square
  • 2-3/4" Deep
  • Uses a GM Weatherpack plug
    • Squadron Pro 2.0
  • Larger 3-1/4" x 3-1/4" square
  • 2-7/8" Deep
  • Uses a Deutsch connector
  • 9 Selectable backlight colors
  • Greater distance
  • Wider coverage
  • Reduced light spill
  • New clip‑in reflectors
  • New lens gasket design

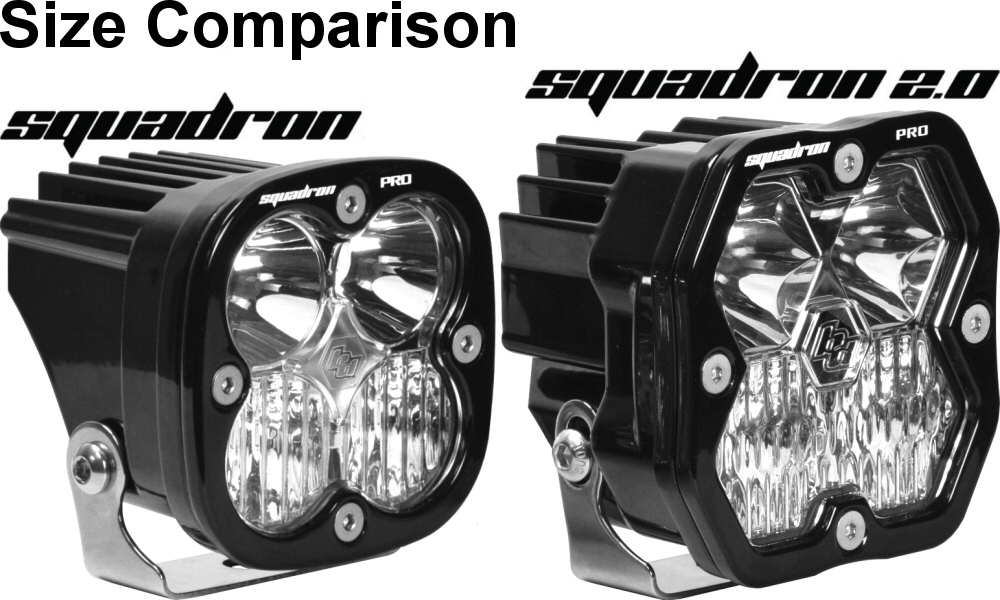

    • Baja Designs Squadron Pro versus Squadron Pro 2.0 size comparison
