Blue Sea Systems M-Series Black Single Battery Cut Off Isolator Switch With Removable Knob

Blue Sea Systems M-Series Black Single Battery Cut Off Isolator Switch With Removable Knob

Suggested: $29.99 Kartek Price: $23.99

Sold As: 1 Battery Switch

Part Number: BSS6006200

MFG Number: 6006200




Blue Sea Systems M-Series Black Single Battery Cut Off Isolator Switch With Removable Knob

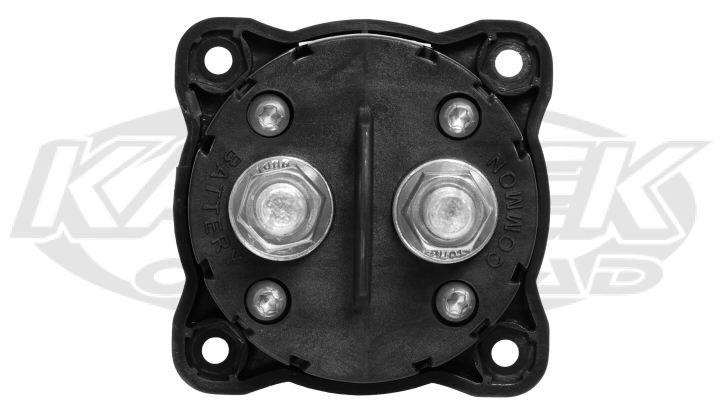

Blue Sea Systems 6006 Battery Switch

    Features:
  • Switches a single battery to a single load group
  • Ignition protected—safe for installation on gasoline powered trucks and buggies
  • Case design allows surface, front panel, or rear panel mounting
  • Isolating cover with snap-on sections protects rear contacts

    Specifications:
  • Switch Type: Single Circuit ON-OFF
  • Color: Black
  • Switch Positions: 2
  • Battery Combine: No
  • Alternator Field Disconnect: No
  • Maximum Voltage: 48V DC
  • Terminal Stud Torque: 120 in-lb (13.56 Nm)
  • Continuous Rating: 300A
  • Intermittent Rating: 500A (5 min)
  • Cranking Rating 10 sec: 1500A
  • Cranking Rating 1 min: 775A
  • Battery Inputs: 1
  • Cable Clearance For 4/0 AWG Cables: 1.12in (28.45 mm)
  • Cable Size to Meet Ratings: 4/0 AWG (120mm*)
  • Mounting Holes: Accept #10 Screw
  • Terminal Stud Size: 3/8" - 16 (M10)
  • Weight: 0.62lb (0.28 kg)
