Small Flat Chromoly Mounting Tab 3/4" Bottom To Center Of Hole 1/4-28 Thread Sold Individually

Small Flat Chromoly Mounting Tab 3/4" Bottom To Center Of Hole 1/4-28 Thread Sold Individually

Suggested: $6.99 Kartek Price: $5.99

Sold As: 1 Mounting Tab

Part Number: PRM29061





Small Flat Chromoly Mounting Tab 3/4" Bottom To Center Of Hole 1/4-28 Thread Sold Individually
This tab has a fixed position/permanent nut similar to a nutsert for easier panel installation and removal. You'll notice the threads are intentionally oblong to create a sort of lock nut almost like a stover nut.

Specifications:
Material: Chromoly Steel
Thickness: 1/16"
Thread Diameter And Pitch: 1/4"-28 Fine Thread
Width: 1-3/8"
Length To Center: 13/16"
Total Length: 1-3/16"

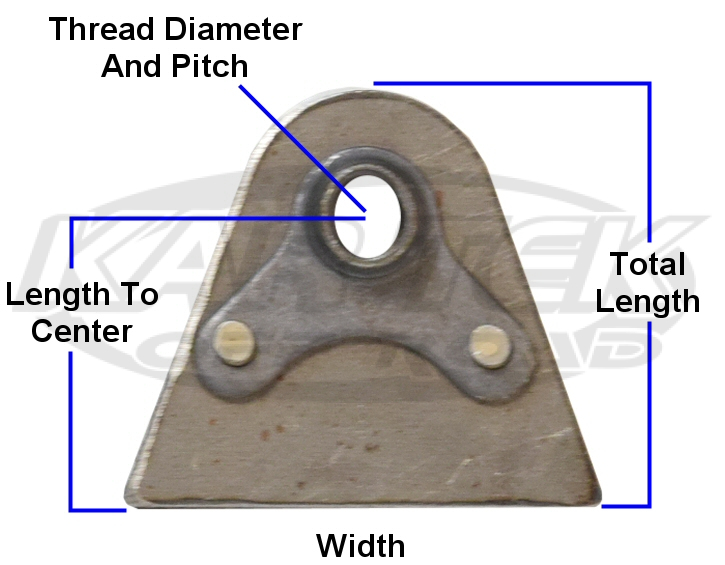

Nutsert Mounting Tab Dimensions
