Silver Eibach 150 Pound 16" Tall Spring For 2.5" Diameter King, Sway-A-Way Or Fox Coil Over Shocks

Silver Eibach 150 Pound 16" Tall Spring For 2.5" Diameter King, Sway-A-Way Or Fox Coil Over Shocks

Suggested: $150.00 Kartek Price: $89.99

Sold As: 1 Eibach Shock Spring For Fox, King, Sway-A-Way

Part Number: ERS1600300150

MFG Number: 1600.300.0150s




Silver Eibach 150 Pound 16" Tall Spring For 2.5" Diameter King, Sway-A-Way Or Fox Coil Over Shocks
If you're going to use this as an upper spring on a dual rate coil-over shock such as King, Fox, or Sway-A-Way, it's important to set the position of your crossover ring so the spring divider hits the cross over ring BEFORE the upper spring crushes itself (coil bind). See diagram below.

Eibach Part Number:
1600.300.0150s
1600-300-0150s
Length: 16 Inches / 406mm
Inside Diameter: 3 Inches / 76mm
Spring Rate: 150 lbs/inch - 2.68 kg/mm - 26 N/mm
Full Compressed Height: 5.08 Inches / 129mm
Travel: 10.92 Inches / 277mm
Load At Full Compression: 1638lbs / 7286N
Weight: 5.33lbs / 2.42kgs

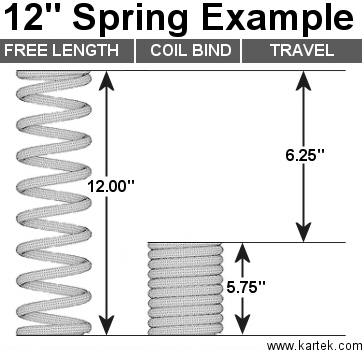

Eibach Spring Dimensions Example


How to setup dual rate springs on Fox shock crossover ring position
