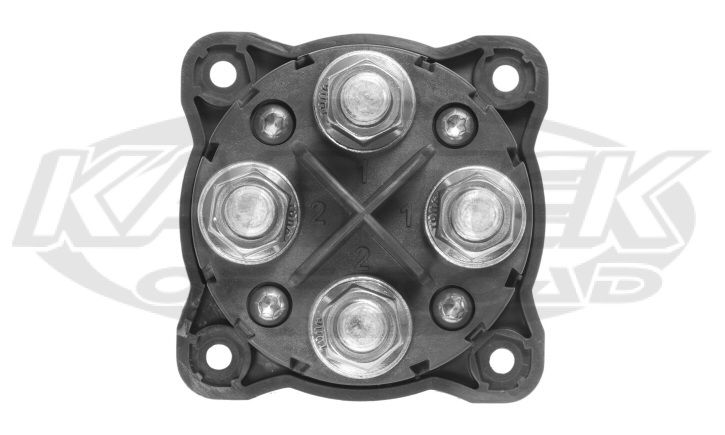

Blue Sea Systems M-Series Dual Circuit Plus Black Dual Battery Cut Off Switch Without AFD

Blue Sea Systems M-Series Dual Circuit Plus Black Dual Battery Cut Off Switch Without AFD

Suggested: $49.99 Kartek Price: $49.99

Sold As: 1 Battery Switch

Part Number: BSS6011200

MFG Number: 6011200




Blue Sea Systems M-Series Dual Circuit Plus Black Dual Battery Cut Off Switch Without AFD
Blue Sea Systems 6010 Dual Battery Switch

Blue Sea Systems 6011 Dual Battery Switch With Dual Circuit Plus


    Features:
  • Simultaneously switches two isolated battery banks or combines battery banks to all loads
  • Make before break contact design allows switching between battery banks without power interruption
  • Ignition protected—safe for installation on gasoline powered trucks and buggies
  • Case design allows surface, front panel, or rear panel mounting
  • Isolating cover with snap-on sections protects rear contacts
    Specifications:
  • Switch Type: Dual Circuit Plus
  • Color: Black
  • Switch Positions: 3
  • Battery Combine: No
  • Alternator Field Disconnect: No
  • Maximum Voltage: 32V DC
  • Terminal Stud Torque: 120 in-lb (13.56 Nm)
  • Continuous Rating: 300A
  • Intermittent Rating: 450A (5 min)
  • Cranking Rating 10 sec: 1000A
  • Cranking Rating 1 min: 650A
  • Battery Inputs: 2
  • Cable Clearance For 4/0 AWG Cables: 1.12in (28.45 mm)
  • Cable Size to Meet Ratings: 4/0 AWG (120mm*)
  • Mounting Holes: Accept #10 Screw
  • Terminal Stud Size: 3/8" - 16 (M10)
  • Weight: 0.80lb (0.36 kg)
