Blue Sea Systems 4 Circuit Positive Fuse Block And Negative Buss Bolts Directly To Battery Terminals

Blue Sea Systems 4 Circuit Positive Fuse Block And Negative Buss Bolts Directly To Battery Terminals

Suggested: $29.99 Kartek Price: $29.99

Sold As: 1 Fuse Box With Cover And Negative Buss With Cover

Part Number: BSS5024

MFG Number: 5024




Blue Sea Systems 4 Circuit Positive Fuse Block And Negative Buss Bolts Directly To Battery Terminals
Blue Sea System's ST-blade battery terminal mount fuse block

Features:
  • Mounts on the battery terminal stud
  • Screw terminals for securing wires
  • Nylon insulated ring terminals included for each screw terminal
  • Accepts small format circuit labels
  • Insulating cover meets ABYC/USCG insulation requirements
  • Ignition Protected–meets ISO 8846 and SAE J1171 for use in a gasoline engine compartment
  • Includes a 4-circuit negative busbar
  • Includes write on labels
  • Includes four 16-14 AWG and four 12-10 AWG Nylon insulated ring terminals
Specifications:
  • Circuits: 4
  • Maximum Amperage: 100A per block 30A per circuit
  • Maximum Voltage: 32V DC
  • Bus Material: Tin-Plater Copper C11000
  • Mounting Hole: 3/8" (M10) Stud
  • Screw Terminal Type: #8-32

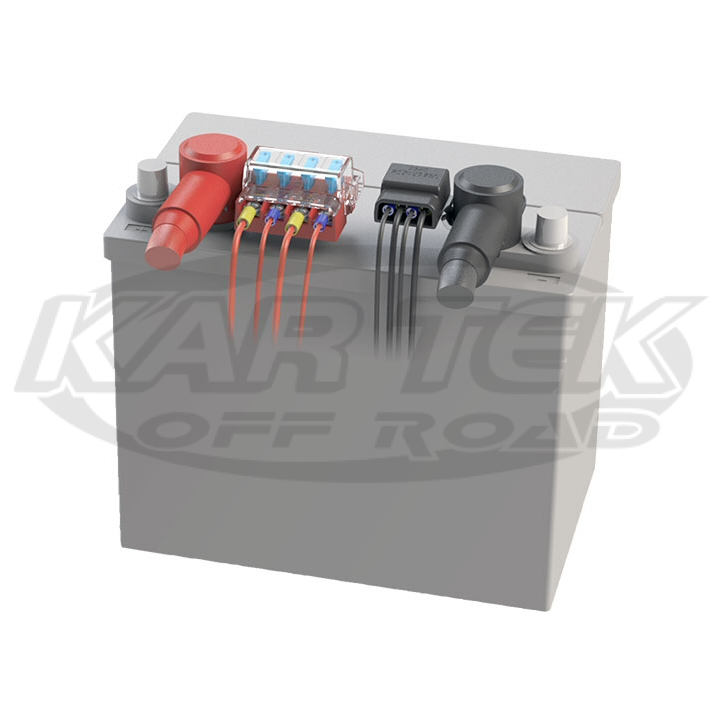

Blue Sea Systems battery termial fuse block
